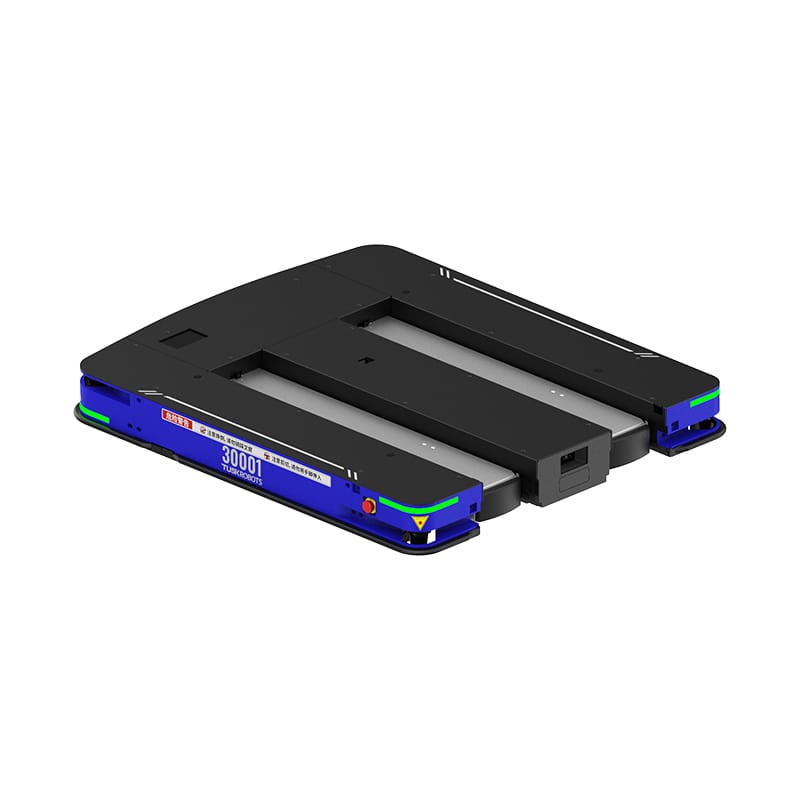

E10TC Pallet AGV
E10TC Pallet AGV
The E10T Pallet AGV is the core model in the E series, specializing in the precise transfer of medium and heavy loads up to 1,000 kg. With four key selling points: precise navigation, comprehensive safety, heavy-load adaptability, and long-lasting endurance, it is the ideal choice for medium and heavy-duty logistics automation.
- Precise Positioning and Efficient Flow: Utilizing QR code navigation, it offers a stopping accuracy of ±5mm/±1°, a speed of 2.0m/s empty and 1.8m/s fully loaded. It allows for zero deviation in the docking of medium and heavy pallets and storage and retrieval from shelves, ensuring smooth and efficient multi-device collaboration.
- Comprehensive Safety and No-Blind-Angle Protection: Dual front laser sensors and a rear laser sensor provide 360° obstacle avoidance. Combined with an emergency stop button, collision warning strips on all sides, and voice and light warnings, it eliminates the risk of collisions in mixed traffic and densely packed environments.
- Heavy-duty adaptability and multi-scenario coverage: With a rated load of 1000kg and a maximum fork arm extension of 1400mm, it's compatible with standard pallets and various medium- and heavy-duty materials. The vehicle's body adapts to 40mm gaps, 4° slopes, and 15mm steps, enabling efficient operation in diverse scenarios such as production line restocking and warehouse sorting.
- Long-lasting battery life and stable output: The 51.2V/30AH lithium iron phosphate battery boasts a battery life of ≥8 hours and a charging time of ≤1.5 hours, enabling uninterrupted medium- and heavy-duty operations across multiple shifts and ensuring efficient logistics processes.
share：
E10TC Pallet AGV
The E10T Pallet AGV is the core model in the E series, specializing in the precise transfer of medium and heavy loads up to 1,000 kg. With four key selling points: precise navigation, comprehensive safety, heavy-load adaptability, and long-lasting endurance, it is the ideal choice for medium and heavy-duty logistics automation.
- Precise Positioning and Efficient Flow: Utilizing QR code navigation, it offers a stopping accuracy of ±5mm/±1°, a speed of 2.0m/s empty and 1.8m/s fully loaded. It allows for zero deviation in the docking of medium and heavy pallets and storage and retrieval from shelves, ensuring smooth and efficient multi-device collaboration.
- Comprehensive Safety and No-Blind-Angle Protection: Dual front laser sensors and a rear laser sensor provide 360° obstacle avoidance. Combined with an emergency stop button, collision warning strips on all sides, and voice and light warnings, it eliminates the risk of collisions in mixed traffic and densely packed environments.
- Heavy-duty adaptability and multi-scenario coverage: With a rated load of 1000kg and a maximum fork arm extension of 1400mm, it's compatible with standard pallets and various medium- and heavy-duty materials. The vehicle's body adapts to 40mm gaps, 4° slopes, and 15mm steps, enabling efficient operation in diverse scenarios such as production line restocking and warehouse sorting.
- Long-lasting battery life and stable output: The 51.2V/30AH lithium iron phosphate battery boasts a battery life of ≥8 hours and a charging time of ≤1.5 hours, enabling uninterrupted medium- and heavy-duty operations across multiple shifts and ensuring efficient logistics processes.
share：
E10T Pallet AGV: Intelligent Medium and Heavy Load Transfer
The E10T Pallet AGV is the flagship model in the E series, designed for precise handling and transfer of medium and heavy loads up to 1,000 kg. With four key advantages—precise navigation, comprehensive safety, heavy-load adaptability, and long-lasting endurance—it is the ideal solution for automated medium- and heavy-duty logistics.
Precise Positioning and Efficient Flow
Equipped with QR code + laser SLAM navigation, the Pallet AGV achieves stopping accuracy of ±10mm/±1° with speeds of 2.0m/s empty and 1.8m/s fully loaded. This ensures zero deviation when docking medium and heavy pallets on production lines or accessing storage shelves. Its precision enables smooth multi-device collaboration and maximizes operational efficiency in complex environments.
Comprehensive Safety and 360° Protection
Dual front and rear laser sensors provide full 360° obstacle detection, preventing collisions in densely packed or mixed-traffic scenarios. Additional safety features include an emergency stop button, collision warning strips surrounding the vehicle, fork tip pressure wave detection, and voice and light alarms. Optional 3D obstacle avoidance enhances protection for both personnel and goods, ensuring uninterrupted and secure operations.
Heavy-Duty Adaptability and Multi-Scenario Use
The Pallet AGV handles a rated load of 1000 kg with a maximum fork arm extension of 1400 mm. It adapts to various pallet types and medium- to heavy-duty materials. The chassis adjusts to 40mm floor gaps, 4° slopes, and 15mm steps, making it suitable for production line replenishment, warehouse pallet sorting, and other material-handling scenarios. Its versatility supports diverse industrial and logistics workflows.
Long-Lasting Battery Life and Reliable Performance
Powered by a 51.2V/30AH lithium iron phosphate battery, the E10T offers ≥8 hours of continuous operation and a quick charging time of ≤1.5 hours. Its battery ensures stable, uninterrupted performance across multiple shifts, supporting high-demand operations while minimizing downtime.
Applications and Workflow Integration
From medium- and heavy-load material distribution in automotive and manufacturing production lines to intelligent pallet transfer in smart warehouses, the Pallet AGV provides reliable automation. By improving precision, safety, and efficiency, it helps enterprises reduce labor costs, enhance throughput, and strengthen operational reliability across the logistics chain.
| Category | Item | Specification (Model: E10TC) |
|---|---|---|
| Basic Parameters | ||
| Basic Parameters | Dimensions (L×W×H) (mm) | 1286×1102×170 |
| Basic Parameters | Load Capacity (kg) | 1000 |
| Basic Parameters | Self Weight (kg) | 326 |
| Basic Parameters | Rotation Diameter (mm) | 1593 |
| Basic Parameters | Fork Arm Height (mm) | 90 |
| Basic Parameters | Max Fork Arm Extension Length (mm) | 1400 |
| Basic Parameters | Max Lifting Height (mm) | ≤330 |
| Basic Parameters | Pallet Pocket Height (mm) | 95-130 |
| Basic Parameters | Display Screen | 5-inch |
| Basic Parameters | Communication Method | Default WIFI Version: Supports dual-band 2.4G/5G, IEEE802.11b/g/n (-5G version supports 5G communication) |
| Basic Parameters | Obstacle Avoidance Protection | Front dual laser + rear dual laser sensor, 360° obstacle detection |
| Safety Protection | ||
| Safety Protection | Front Laser Detection Distance (m) | 0-3 |
| Safety Protection | Mechanical Protection | Emergency stop button, reset button, surrounding collision strips |
| Safety Protection | Alarm Function | Equipped with voice and light alarm functions |
| Safety Protection | Fork Tip Protection | Pressure wave collision strip |
| Safety Protection | 3D Obstacle Avoidance | Optional |
| Safety Protection | Navigation Mode | QR Code + Laser SLAM |
| Motion Performance | ||
| Motion Performance | Max Speed (No Load/Full Load) (m/s) | 2.0 / 1.8 |
| Motion Performance | Max Acceleration (m/s²) | 1 |
| Motion Performance | Stopping Accuracy | ±10mm / ±1° |
| Motion Performance | Motion Method | Dual-wheel Differential |
| Motion Performance | Vehicle Ground Adaptability | 40mm (gap) / 4°(7%) (slope) / 15mm (step) |
| Motion Performance | Max Fork Arm Extension Slope (°) | 2°(3.5%) |
| Lithium Battery Performance | ||
| Lithium Battery Performance | Rated Voltage/Capacity | 51.2V / 30AH |
| Lithium Battery Performance | Battery Life | 2000 cycles (battery capacity guaranteed above 70% of new battery) |
| Lithium Battery Performance | Endurance/Charging Time | ≥8H / ≤1.5H |
| Lithium Battery Performance | Battery Type | Lithium Iron Phosphate Battery |
| Environment | ||
| Environment | Operating Temperature (℃) | 0~45 |
Want to build your own project?
Get a Quote Right Now
Narrow passage
APR in-situ rotation
Working channel 1800mm
Working channel 1800mm
High security
360° laser obstacle avoidance
protection
protection
High load
Rated load up to 1000KG
Floor drum docking
Active telescopic fork arm
Adapt to the scene
Dense storage
Roller docking
Elevator docking
Robot arm docking
Compatible vehicles
Specification
parameter
type
W1 (mm)
W1 ≤ 190
700≤ W2 ≤ 950
W2 (mm)
740 ≤ W2 ≤ 980 (extended version)
95 ≤ H ≤ 130
H(mm)
≤1400(E10T、E10TC)
110 ≤ H ≤ 140 (extended version)
L(mm)
≤2400 (extended version)
E-Series Pallet Robot APR
High Load Capacity
Supports up to 1.5T load with stable vehicle operation.
Narrow Passage
Working aisle only 1800mm, high storage
capacity.
capacity.
Hybrid Navigation
SLAM and QR code navigation, seamless switching.
High-Speed Operation
Supports maximum speed of 2m/s with flexible, curved control.
adapt
Chuanzi Pallets
Material Carts
Cage Carts
Platform Boxes
adaptation
High-density storage
Automatic warehouse hoist docking
Robotic arm docking
Elevator crossing
floors
floors
Basic frame
E10 Frame
E08 Frame
Waterproof Frame
Extended Frame
CE Frame
Low Temperature Frame
Cleanroom Frame
Omnidirectional Frame
Optional functions
Ultra-thin forklift
Heavy-duty forklift
High-speed forklift
Extended forklift
Three-beam forklift
Telescopic T-type forklift
Standard D-type forklift
Lifted SLAM
Components
Components
3D Obstacle Avoidance Components
Tray Scanning Components
Wideened Frame Components
Cage Bracket Components
Quick-Release Battery Components
Android Screen Components
Waterproof
Components
Components
Anti-Slip Components
SLAM Components
Dashcam
