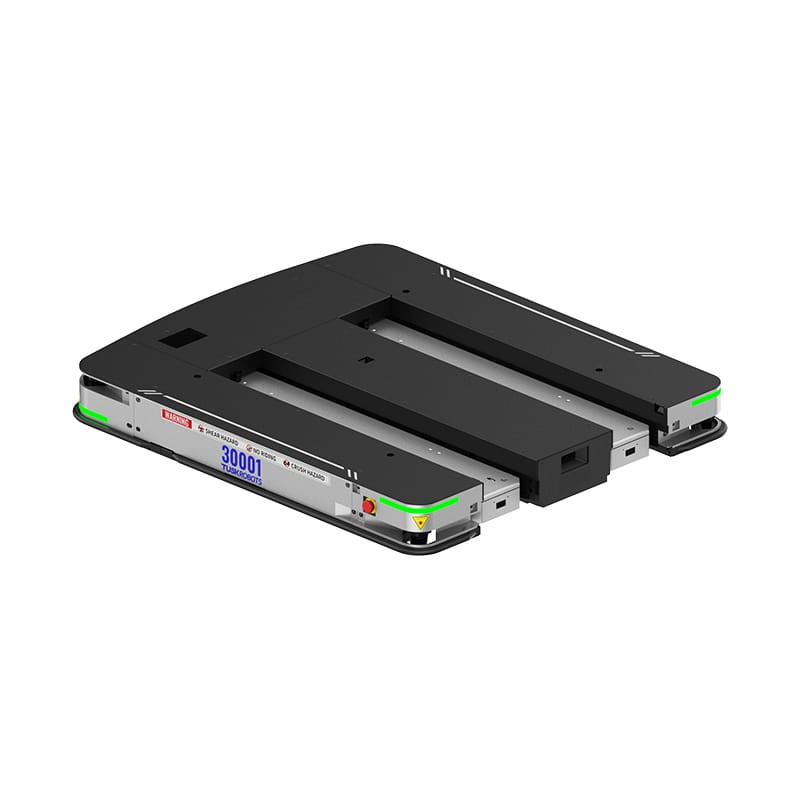

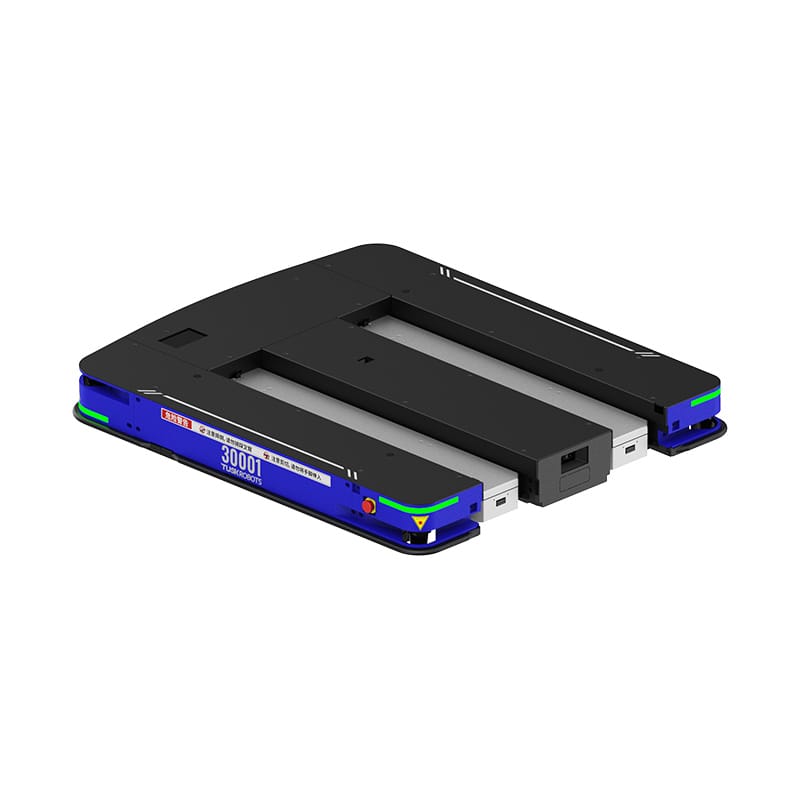

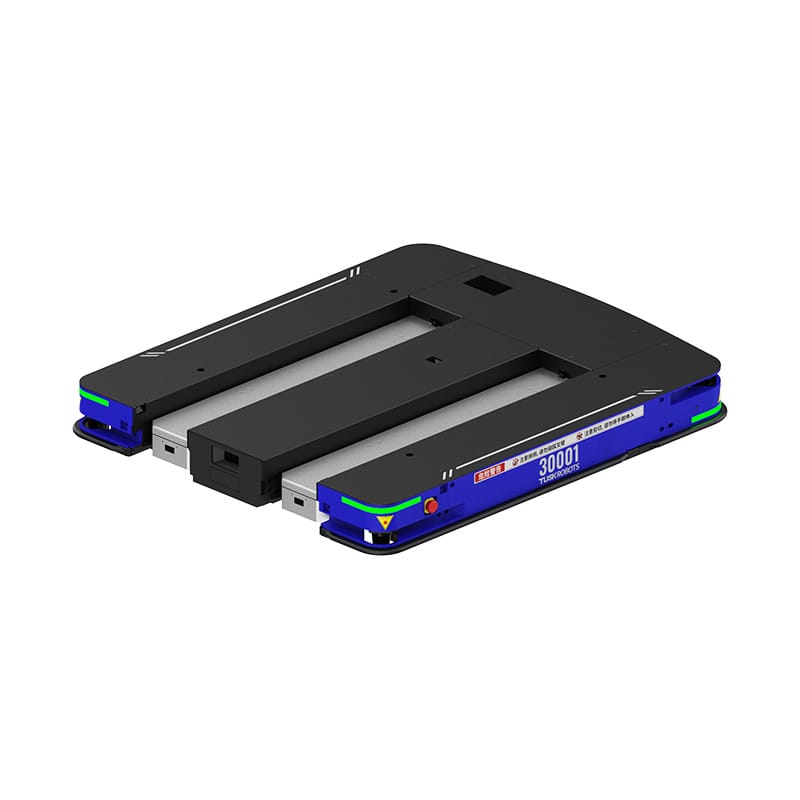

E10D-C Small Parts Transport Robot with ፎርክን አስብ

The E10D-C is the core model in the E series, specifically designed for precise handling and transfer of small items weighing up to 600kg. With four key advantages — small-item adaptability, precise positioning, comprehensive safety, and high efficiency — it is the ideal choice for automated material flow in electronics, light industrial applications, and other sectors. Equipped with a thin fork, it ensures smooth and accurate engagement with narrow pallets and small containers.

Precise Handling for Small Objects Using Thin Fork

Featuring a rated load of 600kg, a fork arm height of 80mm, and a pallet insertion height of 85-100mm, the E10D-C with thin fork design perfectly accommodates small materials such as bins and narrow pallets. This ensures stable, precise, and seamless pick-and-place operations for efficient material handling.

Micron-Level Positioning with QR Code Navigation

The E10D-C utilizes QR code navigation to achieve stopping accuracy of ±5mm/±1°, guaranteeing zero deviation when docking small items on production lines or accessing shelves. This high precision supports smooth multi-device collaboration in complex or high-density logistics environments, increasing overall efficiency.

Comprehensive Safety and Reliable Thin Fork Operation

Safety is a priority with dual front lasers and a rear laser sensor providing 360° obstacle avoidance. Fork tips feature photoelectric sensors with a detection range ≤100mm. Emergency stop buttons, collision warning strips, and voice and light alarms further reduce the risk of accidents, ensuring safe operation in areas where small items and personnel coexist. The thin fork enhances safe and accurate handling even in tight spaces.

Efficient and Flexible Operation Across Scenarios

The vehicle operates at speeds of 2.0m/s unloaded and 1.8m/s fully loaded, accommodating 40mm gaps, 4° slopes, and 15mm steps. Its 51.2V/30AH lithium iron phosphate battery ensures ≥8 hours of runtime and ≤1.5 hours of fast charging, enabling uninterrupted operation for multiple shifts. The thin fork design supports high-precision handling for electronics and light industrial products in various production and storage scenarios.

Optimized Workflow with Thin Fork for Small Pallets

The integration of the thin fork allows precise engagement with narrow pallets and containers, reducing handling errors and improving overall logistics efficiency. Combined with the E10D-C’s intelligent navigation and safety features, it ensures reliable, high-precision material transfers in automated small-item logistics.

From precise delivery of electronic components on production lines to sorting and warehousing small industrial parts, the E10D-C, with its thin fork and precise handling capabilities, enables enterprises to automate light-load logistics, reduce costs, and enhance efficiency while maintaining high safety standards.

ጠባብ መተላለፊያ

APR በቦታው መዞር
የሚሰራ ቻናል 1800mm

ከፍተኛ ደህንነት

360 ° የሌዘር እንቅፋት ማስወገድ
ጥበቃ

ከፍተኛ ጭነት

ደረጃ የተሰጠው ጭነት እስከ 1000 ኪ.ግ

የወለል ከበሮ መትከያ

ንቁ የቴሌስኮፒክ ሹካ ክንድ

ከስፍራው ጋር መላመድ

ጥቅጥቅ ያለ ማከማቻ

ሮለር መትከያ

የሊፍት መትከያ

የሮቦት ክንድ መትከያ

ተስማሚ ተሽከርካሪዎች

ዝርዝር መግለጫ

መለኪያ

ዓይነት

ወ1 (ሚሜ)

ወ1≤ 190

700≤ W2 ≤ 950

W2 (ሚሜ)

740 ≤ W2 ≤ 980 (የተራዘመ ስሪት)

95 ≤ ሸ ≤ 130

ሸ(ሚሜ)

≤1400(E10T፣E10TC)

110 ≤ H ≤ 140 (የተራዘመ ስሪት)

ኤል(ሚሜ)

≤2400 (የተራዘመ ስሪት)

ኢ ተከታታይ

ኢ-ተከታታይ Pallet Robot APR

ከፍተኛ የመጫን አቅም

በተረጋጋ የተሽከርካሪ አሠራር እስከ 1.5T ጭነት ይደግፋል።.

ጠባብ መተላለፊያ

የሚሰራ መተላለፊያ 1800 ሚሜ ብቻ ፣ ከፍተኛ ማከማቻ
አቅም.

ድብልቅ ዳሰሳ

SLAM እና QR ኮድ አሰሳ፣ እንከን የለሽ መቀያየር።.

ከፍተኛ ፍጥነት ያለው አሠራር

ከፍተኛውን የ2m/s ፍጥነት በተለዋዋጭ፣ በተጠማዘዘ መቆጣጠሪያ ይደግፋል።.

መላመድ

Chuanzi Pallets

የቁሳቁስ ጋሪዎች

Cage Carts

የመድረክ ሳጥኖች

መላመድ

ከፍተኛ መጠን ያለው ማከማቻ

ራስ-ሰር የመጋዘን ማንሻ መትከያ

የሮቦቲክ ክንድ መትከያ

የሊፍት መሻገሪያ
ወለሎች

መሰረታዊ ፍሬም

E10 ፍሬም

E08 ፍሬም

የውሃ መከላከያ ፍሬም

የተራዘመ ፍሬም

CE ፍሬም

ዝቅተኛ የሙቀት መጠን ፍሬም

የጽዳት ክፍል ፍሬም

ሁለንተናዊ ፍሬም

አማራጭ ተግባራት

እጅግ በጣም ቀጭን ፎርክሊፍት

ከባድ-ተረኛ ፎርክሊፍ

ባለከፍተኛ ፍጥነት ሹካ

የተራዘመ ፎርክሊፍት

ባለሶስት-ጨረር ሹካ

ቴሌስኮፒክ ቲ-አይነት ሹካ

መደበኛ D-አይነት ፎርክሊፍት

SLAM ተነስቷል።
አካላት

3D እንቅፋት ማስወገድ ክፍሎች

የትሪ ቅኝት አካላት

ሰፊ የፍሬም ክፍሎች

Cage ቅንፍ ክፍሎች

ፈጣን-የሚለቀቁ የባትሪ ክፍሎች

አንድሮይድ ስክሪን አካላት

የውሃ መከላከያ
አካላት

ፀረ-ተንሸራታች አካላት

SLAM ክፍሎች

ዳሽካም
